Food Grade Hose

Food Grade Hose

  • One hose for all food applications
  • Liquid food
  • Alcoholic beverages up to 75% proof - wine, beer & spirit

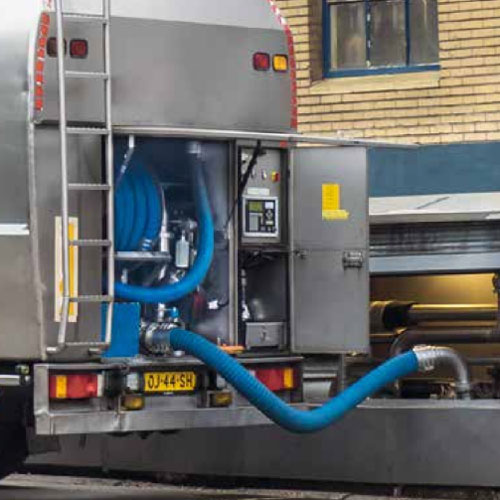

  • Milk tanker collection & unloading - ideal for reeling applications
  • Hot food - constant operation: liquid food up to 110 °c (230 °f), fat food up to 120°c (248°f)
  • Fat food - perfect for animal fat and any vegetable oils
food-grade-hose-pipe-fittings-supplier
food-grade-hose-malaysia
food-grade-hose

400LE Evolution

food-grade-hose-fittings

Multi-food S&D 10 bar - 150 psi

  • Ultra clean contamination free nbr tube suitable for all types of liquid food: aqueous, acidic, alcohol or alcoholic beverages and fats
  • Extruded tube construction
  • Excellent flexibility BR = 2 x ID
  • Constant operating temperature range: liquid food up to 110 °c (230 °f), Fat food up to 120°c (248°f)
  • Tube compliant to fda, Italian D.M. 21/03/73 and 3a sanitary standard class II In accordance with EC 1935/2004 and EC 2023/2006 and totally phthalates and BPA (Bisphenol A) free
CONSTRUCTION
Tube: white synthetic rubber specially compounded to satisfy the highest food industry standards
Reinforcement: high tensile textile cords with embedded steel helix wire
Cover: blue synthetic rubber ideal in applications where ozone, weathering & abrasion resistance are required.

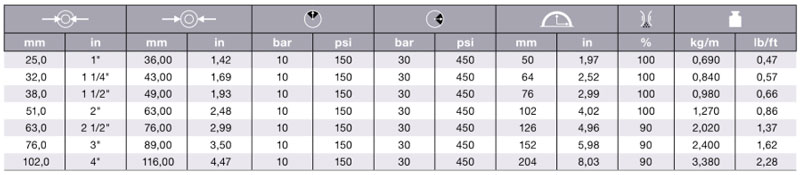

400LE Table

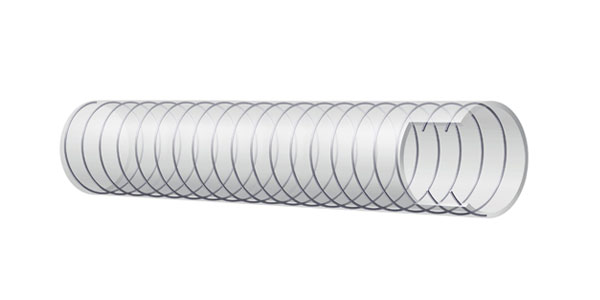

PVC Hose 47200

General purpose food quality S&D - PVC
FDA EU10/2011 A+B+C AS 2070

Construction : Transparent PVC – Abrasion and ozone resistant
Reinforcement : Steel helix wire
Use : General purpose liquid food and alcoholic beverages suction and delivery – max 20% – Sterilize with 5% soda solution
Safety factor : 3:1
Temperature : -5°C +60°C (+23℉ +140℉)
47200-Table
food-grade-hose-malaysia

Full Compliace with European Regulations

ALFAGOMMA offers a wide range of rubber and PVC hoses for food transfer fully complying with the existing regulations for materials in contact with food:

EC 1935/2004

General requirements for materials that come into contact with food. ALFAGOMMA food hoses are specifically developed to meet the migration limits so as not to endanger human health, change the food composition or deteriorate the taste and odour of food.

EC 2023/2006

Good manufacturing practice for materials and articles intended to come into contact with food ALFAGOMMA has thorough quality assurance and control systems.

EU 10/2011

Requirements for plastic materials, restrictions on the use of phthalates, use of specific simulants depending on food types:
SIMULANT FOOD
A ethanol 10% aqueous foods
B acetic acid3% acidic foods
C ethanol 20% alcoholic foods up to an alcoholic content of 20%
D1 ethanol 50% alcoholic foods with an alcoholic content of above 20% and milk products
D2 vegetable oil fat foods
E MPPO (Tenax) dry foods
* ALFAGOMMA PVC food hoses are totally phthalate free.

National Legislations of EU Member States

ALFAGOMMA rubber food hoses are tested by approved external laboratory according to the most important european national provisions.
** ACCORDING TO EC 1935/2004, THE FULL RANGE OF AG FOOD HOSES BEAR THE “GLASS AND FORK” SYMBOL ON THE BRAND.
